This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

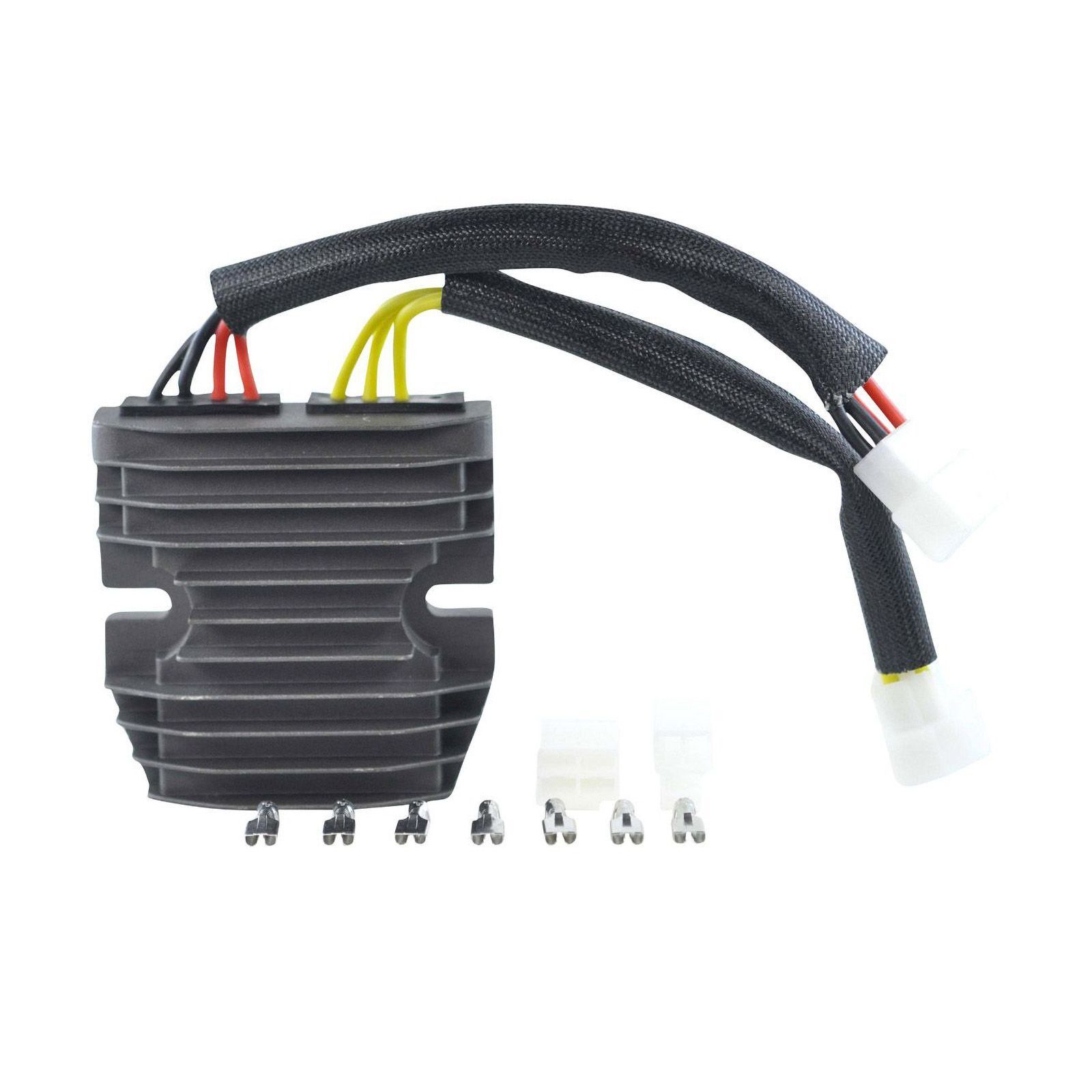

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !

It is time to update or replace your voltage regulator with the advanced MOSFET type. It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Please Note: There are two possible regulators for the model Triumph 675 Street Triple 2009-2010, please compare the length of the original harness on your regulator with our product.

Dimensions:

  • Width: 30mm
  • Length: 94mm
  • Height: 82mm
  • Fixation holes centre to centre: 75mm
  • Wires Length: 171mm & 200mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 7
  • Number of wires: 7
  • Minimum Charging Voltage: 14.5V +/- 0.5V
  • Maximum Charging Current: 50A/500W
  • Open Circuit Voltage: <15V
  • Operation Temperature: -20° to 85°

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

(WPS-RMS30508H)
