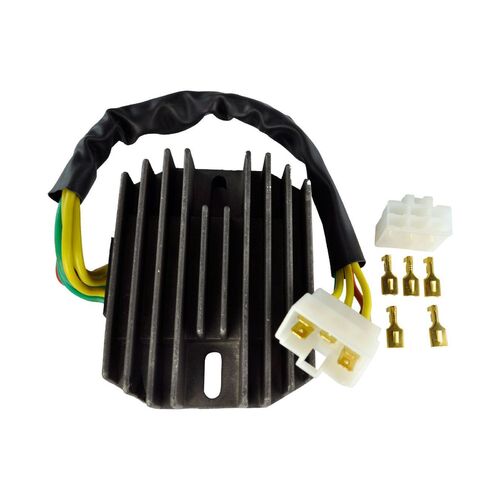

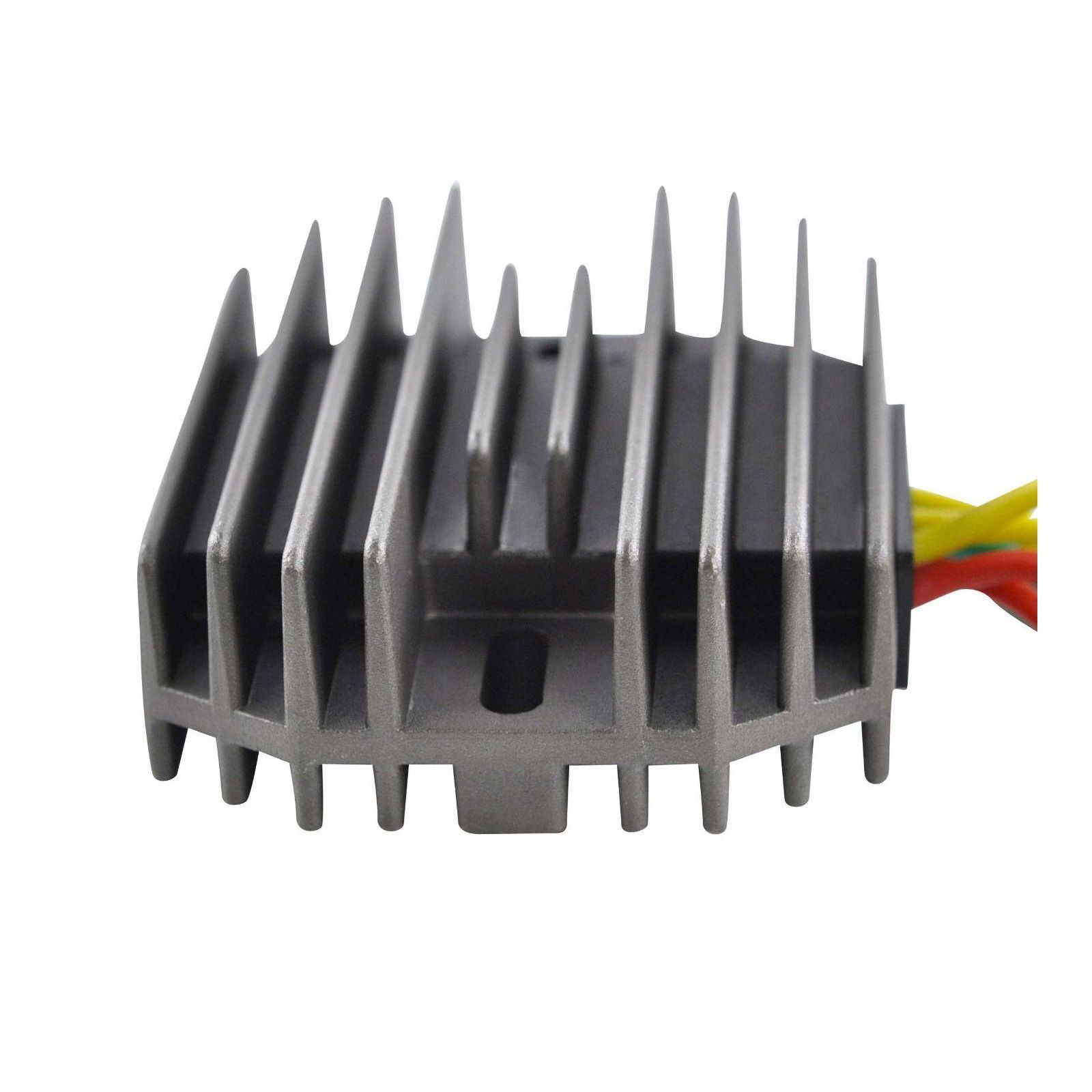

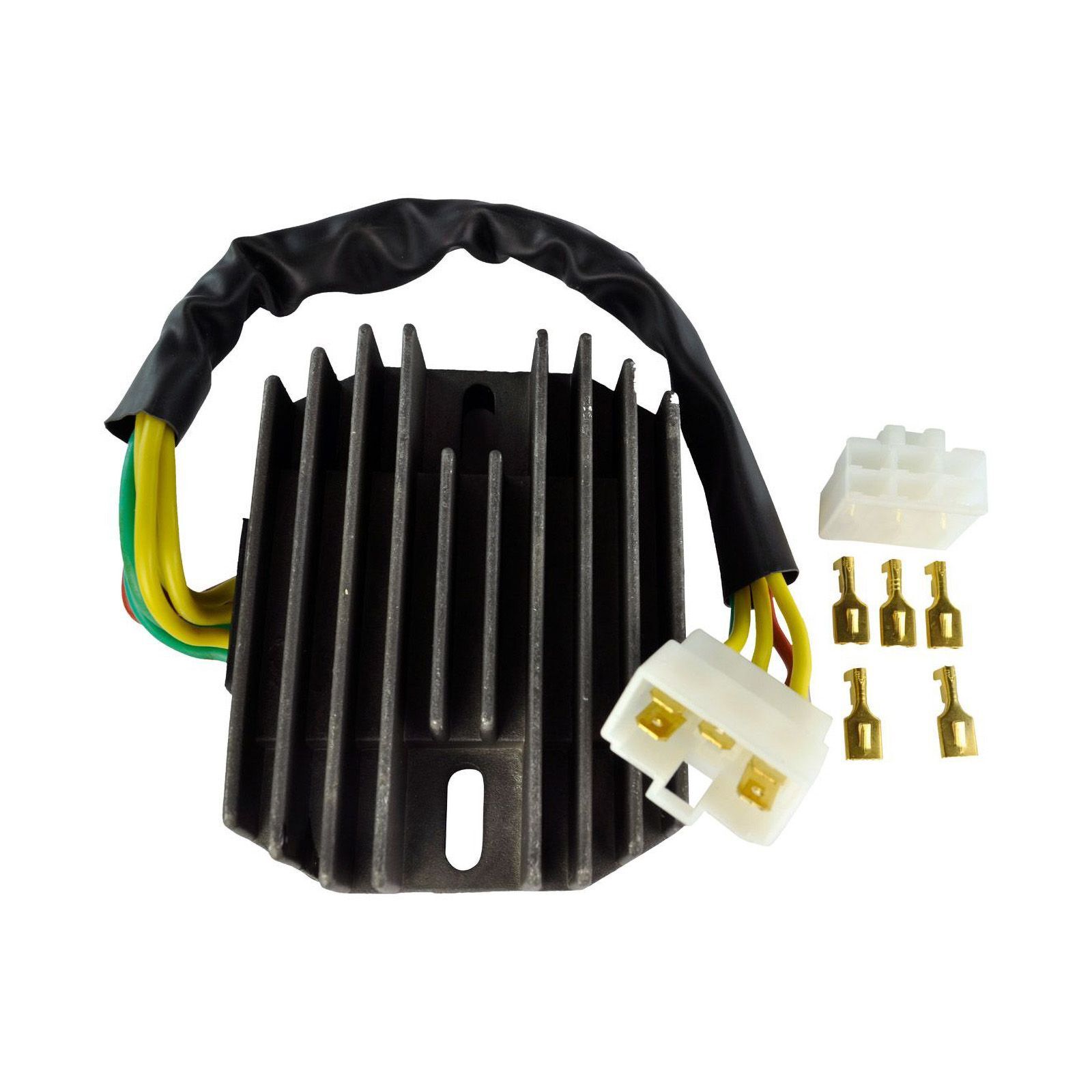

Brand new voltage regulator rectifier

BEWARE: 1996 and early 1997 454 Bearcat 4x4 has a different plug. Please consult installation instruction before buying this product. Arctic Cat split the year on certain models; the RM30405 replaces OEM parts #3430-037 and #3430-016.

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components.
  • All products shipped are tested

Dimensions:

  • Width: 80mm
  • Length: 115mm
  • Height: 54mm
  • Fixation holes centre to centre: 80mm
  • Wires length: 275mm

Other specifications:

  • Number of plugs: 1
  • Number of pins: 5
  • Minimum Charging Voltage: 14.5V +/- 0.5V
  • Maximum Charging Current: 25A-35A/300W-500W
  • Open Circuit Voltage: <15V
  • Operation Temperature: -20° to 85°

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

(WPS-RMS30405)

SKU WPS-RMS30405
Brand Whites
Shipping Weight 0.5000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.500m
