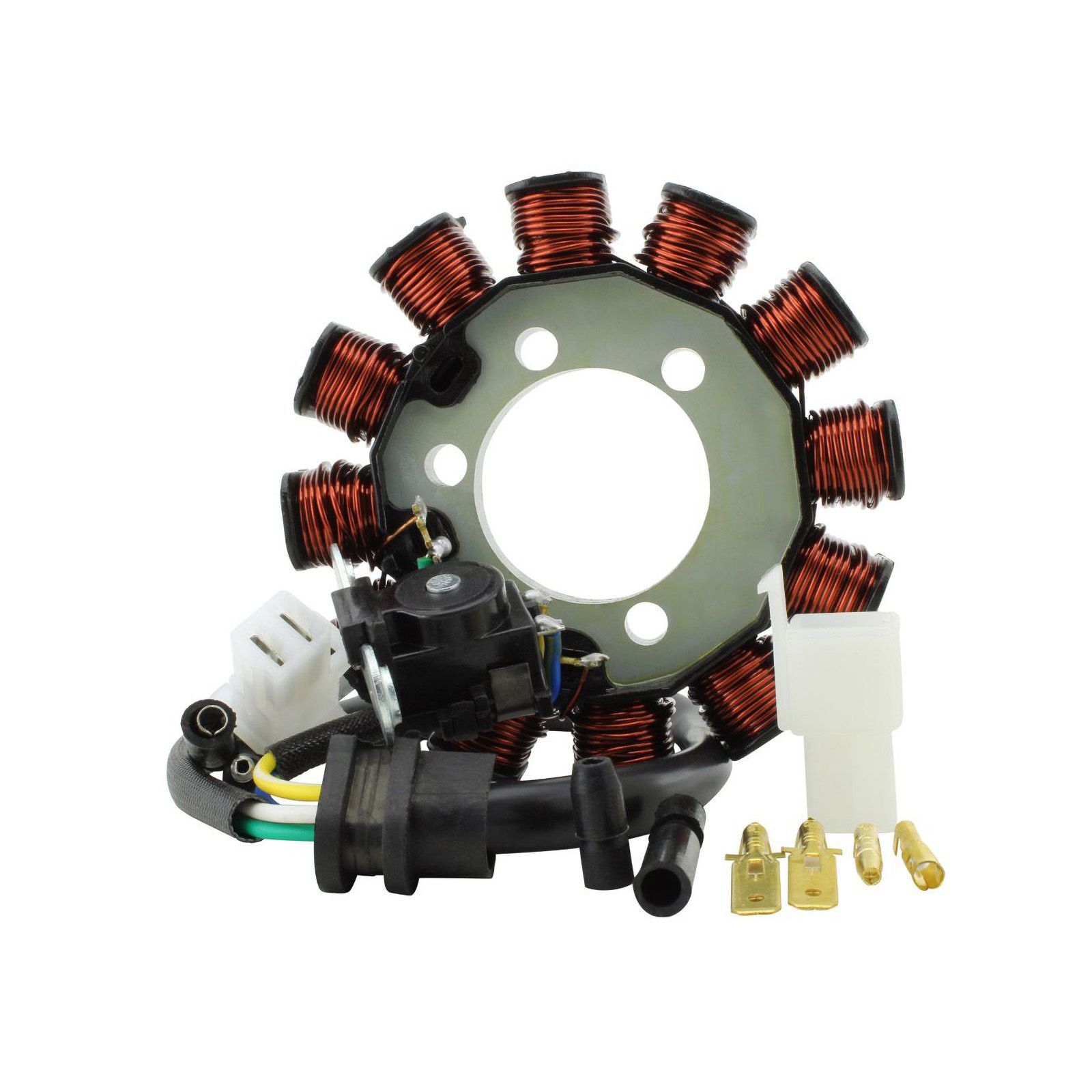

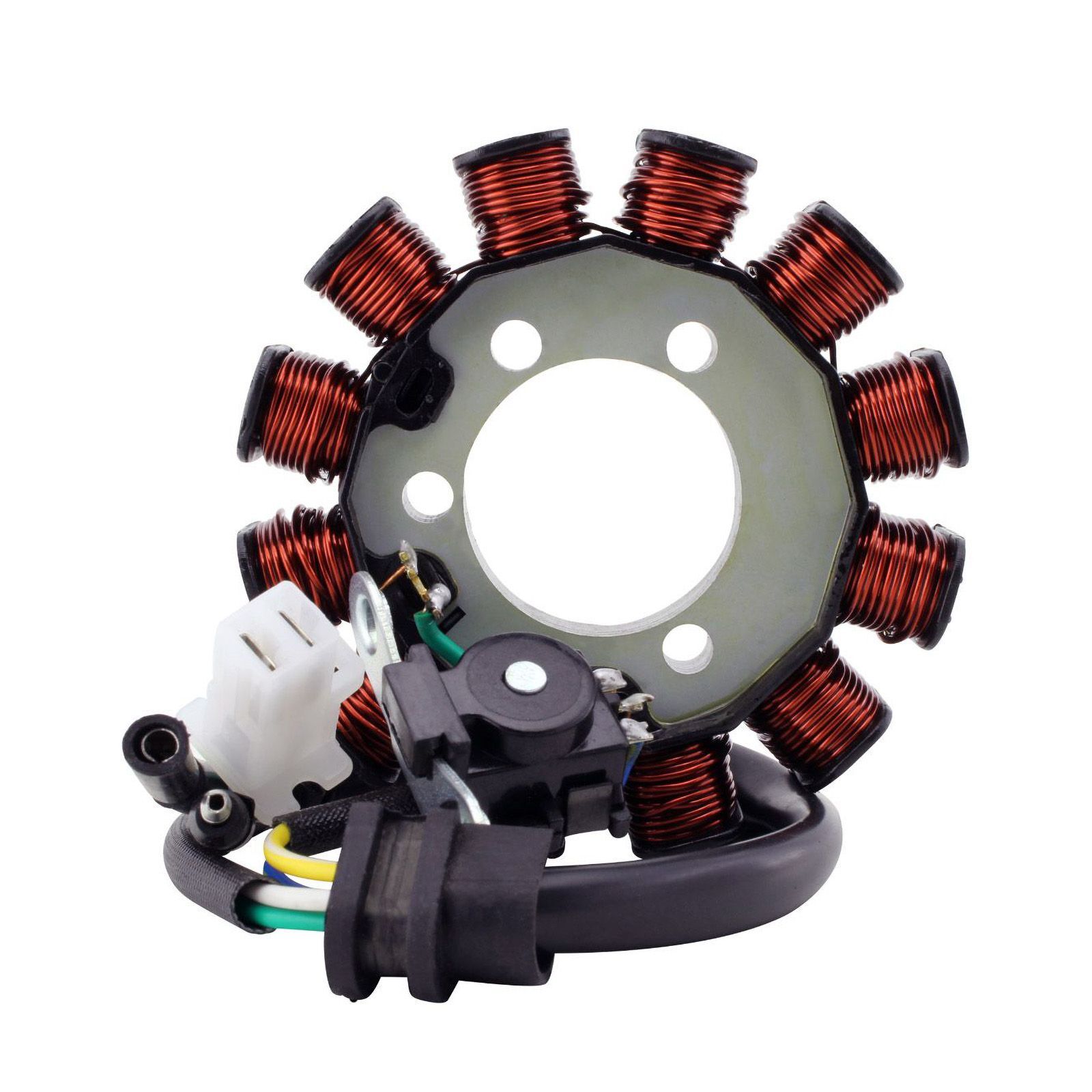

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 35mm
  • Exterior diameter: 93mm
  • Thickness: 9mm
  • Length of wires stator to grommet: 120mm
  • Length of wires grommet to plug: 230mm
  • Length of pickup coil's wire to grommet: 30mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 3
  • Number of pins: 3
  • Number of poles: 12

Wire to wire resistance:

  • Alternator: Green to White = 1.2 ohms +-20%
  • Pickup: Green to Blue/Yellow = 263 ohms +-20%
  • Source: Green = Ground

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

(WPS-RMS010106333)

SKU WPS-RMS010106333
Brand Whites
Shipping Weight 0.5000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.500m
