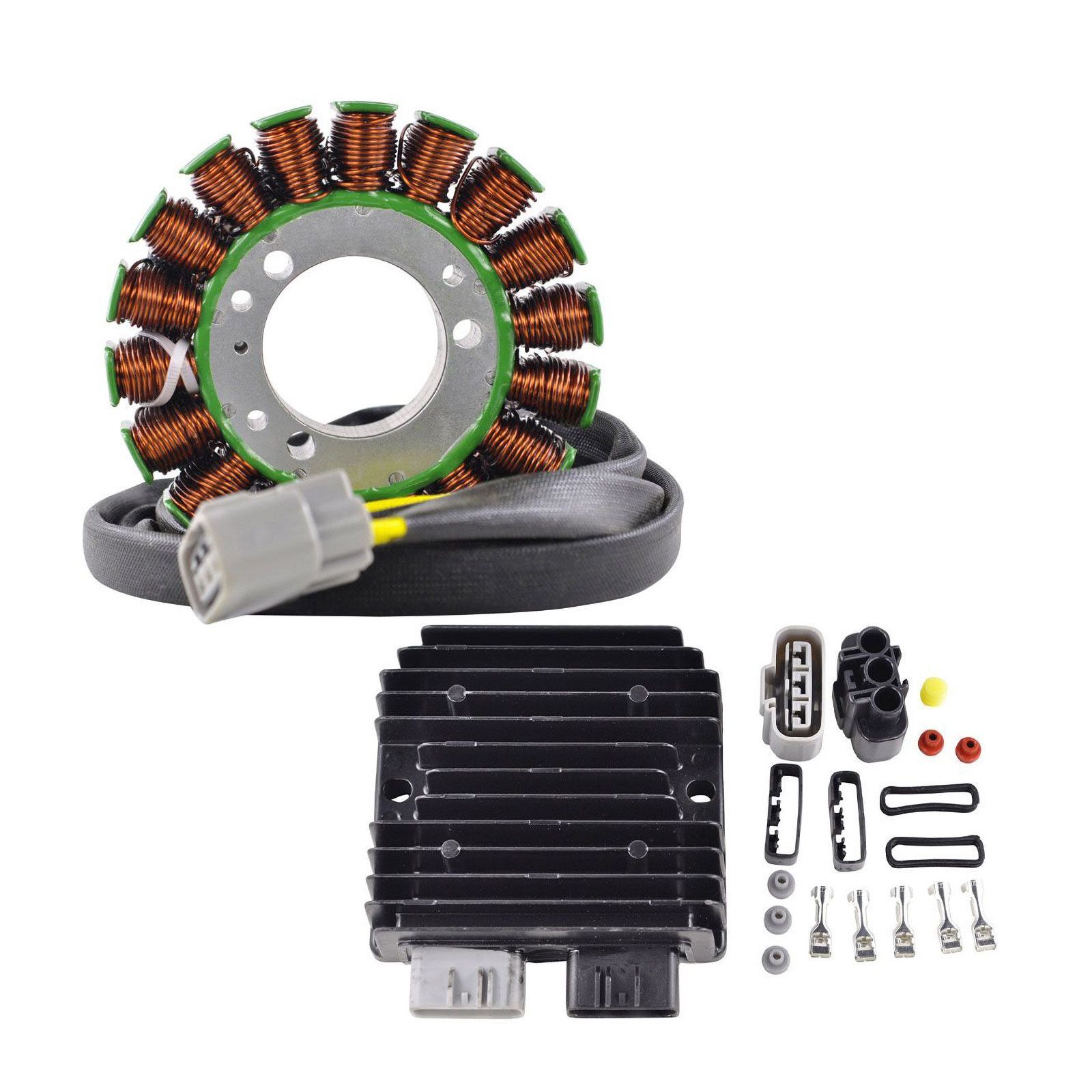

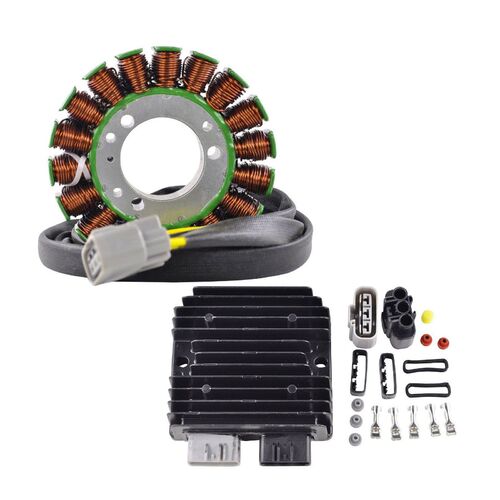

Brand new aftermarket Stator + Voltage Regulator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • All shipped products are tested

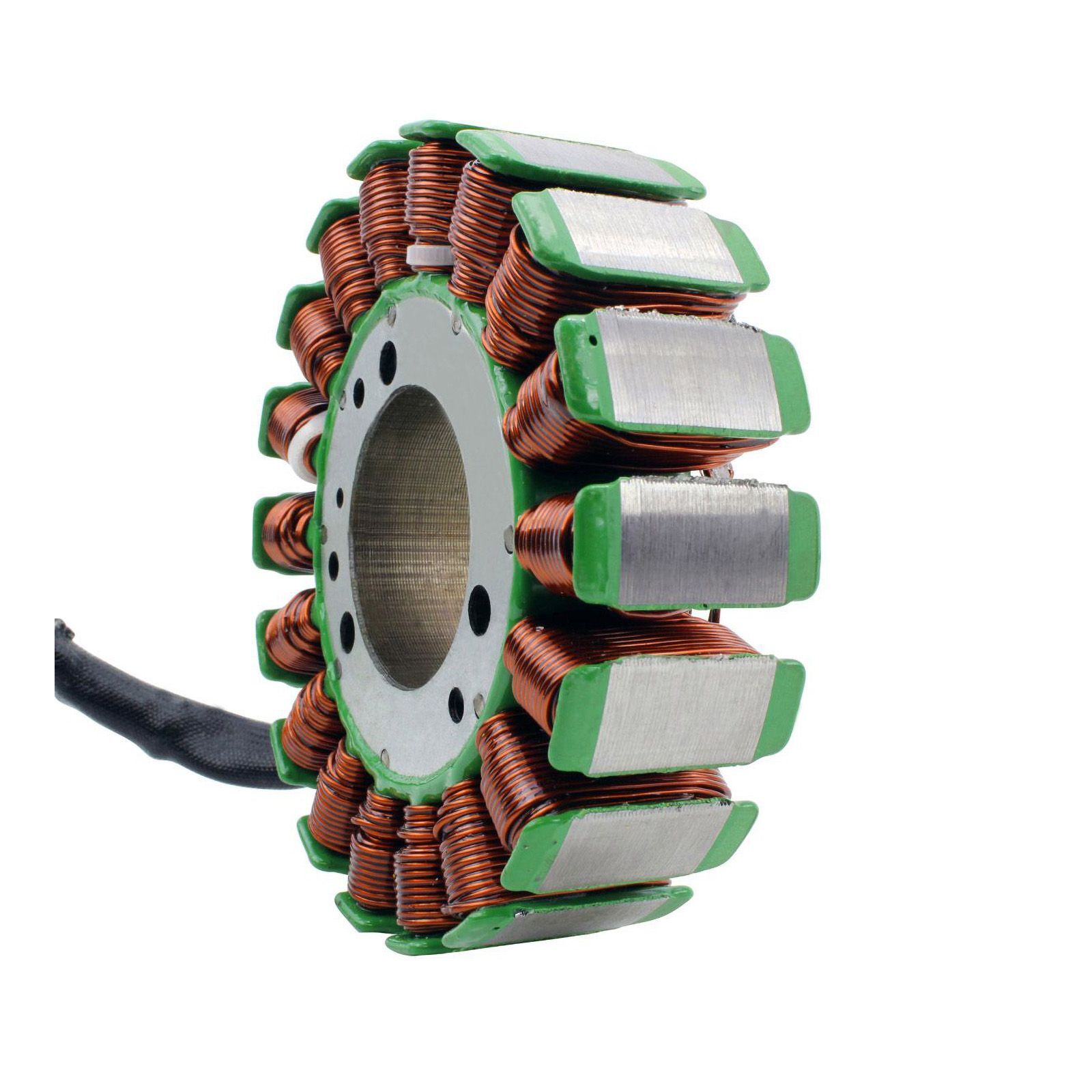

Stator

  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included

What are the advantages of the MOSFET Technology?

  • Runs much cooler than the traditional Shunt voltage regulator rectifier
  • Less load on the stator, less work, less fuel is used and you save
  • The power charging your battery is steadier and smooth
  • Extends the battery’s life and cold-cranking capacity
  • Removes stator load resulting in more engine power
  • Optimize power delivery by switching the stator coils on or off

Stator Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Thickness: 24 mm
  • Length of wires stator to grommet: 150 mm
  • Length of wires grommet to plug: 1470 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18
  • Alternator: Yellow to Yellow = 0.4 ohms +/-20%

Regulator Dimensions:

  • Width: 120 mm
  • Length: 111 mm
  • Height: 35 mm
  • Fixation holes centre to centre: 94 mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 5

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
